FLEXIDRILL

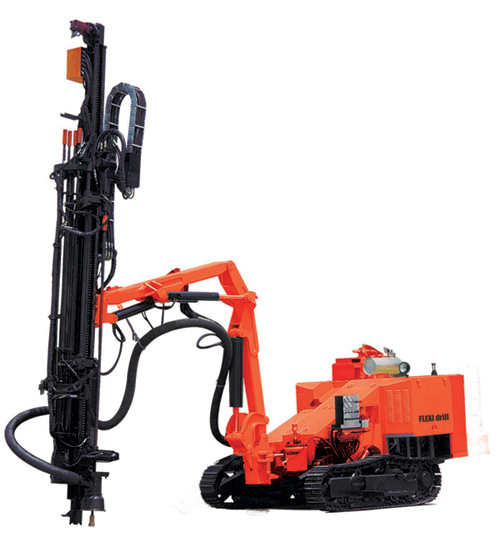

Flexidrill D1

FLEXIDRILL is a top hammers drill rig that can cover a wide range of applications. With 360° feed beam rotation it can drill holes 43-89 mm in any direction. It can be used for roof bolting in underground applications , anchoring , construction of access roads but also for passage of diamond wire.


FLEXIDRILL

HOLE RANGE

mm

43-89

DRILLING DEPTH

m

15

ENGINE

Brand    Kw

CUMMINS
93

HYDRAULIC ROCK DRILL

ROD DIAMETER

mm

R32-T38-T45

ROD LENGTH

mm

3050 / 3660

ROTATION SPEED

Rpm

0-190

ROTATION TORQUE

Nm

850

IMPACT FREQUENCY

Hz

40-60

IMPACT POWER

Kw

15

AIR COMPRESSOR

WORKING PRESSURE

Bar

7

FREE AIR DELIVERY

m3/min

3,4

CARRIER

FEED FORCE

KN

16

PULL UP FORCE

KN

16

GROUND CLEARANCE

mm

340

TRACK OSCILATION

(+/-)0

10

WEIGHT

Kg

10200

SHIPPING DIMENSIONS

(LXWXH) mm

11300X2430X2900
